All About Boats

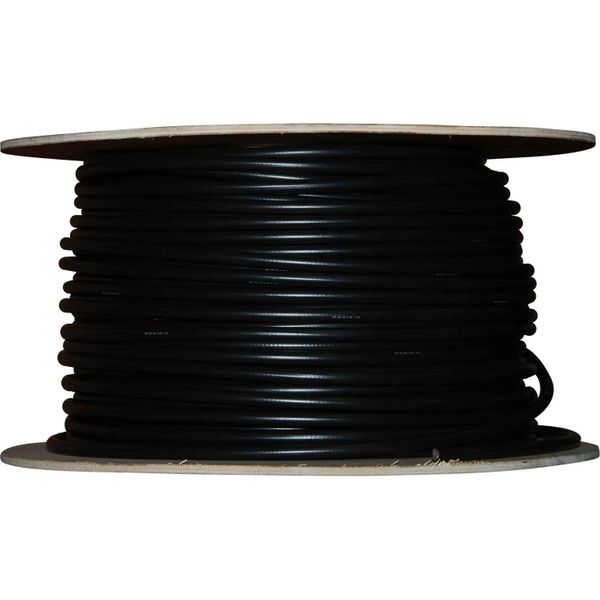

ASAP Electrical Coaxial Cable Sold in 100 Metre Length (RG-58)

ASAP Electrical Coaxial Cable Sold in 100 Metre Length (RG-58)

Regular price £123.11 GBP
Regular price Sale price £123.11 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ASAP Electrical Coaxial Cable Sold in 100 Metre Length (RG-58)



Part No: 716500-100

A 100 Metre coil of Radio Guide 58 (RG-58) spec coaxial cable from the ASAP Electrical range. This cable is designed for transmitting radiocommunication signal, making it suitable for use on board boats. The cable features a centre core surrounded by a dielectric insulator, which is then protected by a metallic shield and a plastic jacket. The design does not permit electric and magnetic fields from outside the cable from interfering, and at the same time allows minimal leakage from inside the cable.

The dielectric insulator in this RG-58 is made from solid polyethylene which results in a time delay of 1.54 nano-seconds per foot. The insulating layer is 2.9mm thick and the whole cable measures 5mm in diameter. The cable features a single, braided shield to protect the signal carrying core.

- Type: RG-58

- Dielectric Insulator Size: 2.9mm

- Characteristic Impedance: 50 ohms

- Max Attenuation: 13.104 @ 750 MHz dB/100 ft

- Available in 25m and 100m lengths



Type Antenna Leads / Cables
Brand ASAP Electrical
Style Coaxial Cable
Cable Cores 1 Core
Colour Black
Unit of Sale 100 Metres
Conductor Specifications Core Size: 0.81mm
Cable Conductor Cross Section Description 5mm
Diameter Description Cable OD: 5mm
Model RG-58
Shape Description Round
