Jabsco 23670-4103 Junior Puppy Electric Motor Pump (24V / 19mm Hose)

Part No: JAB-23670-4103

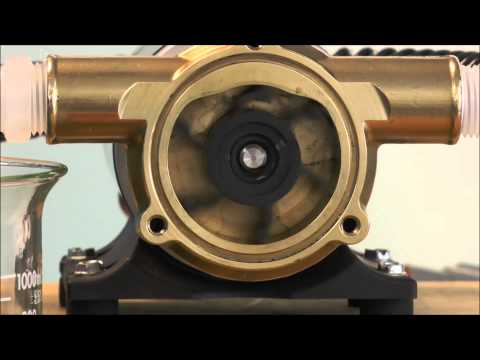

The Jabsco Junior Puppy is a reliable, self priming pump, with a bronze body. All electric impeller pumps must not be mounted vertically where the impeller housing will be above the motor.

This Jabsco puppy pump features a maximum flow rate of 15lpm at 0 head and has a port size of 3/8" BSP female (3/4" OD). The replacement impeller for this pump can be found with part number: JAB-9200-0023B.

This Jabsco Pump 23670-4103 has the following Spare Parts:

Part ID | Spare Part | Part Number | Quantity

1 | End Cover | 9328-0200 | 1

2 | Screw (3 Pack) | 91004-0090 | 3

3 | O-Ring | 18753-0660 | 1

4 | Impeller | 9200-0023B | 1

5 | Seal | SP2701-52B | 1

6 | Screw | X3001-147F | 2

7 | Slinger (3 Pack) | 6342-0000 | 1
