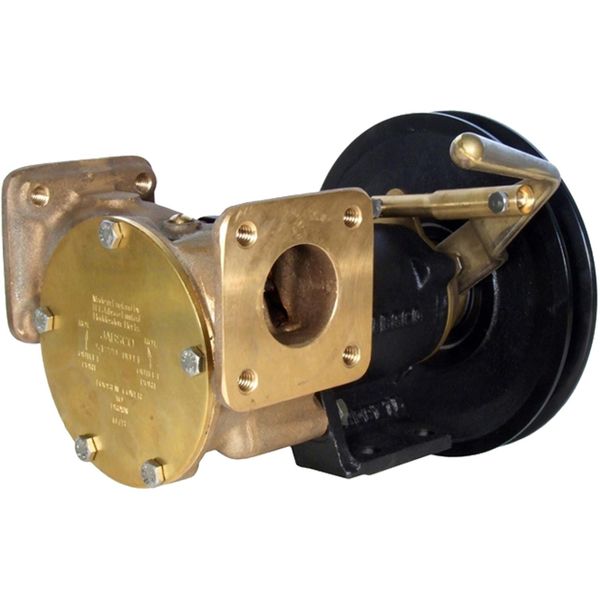

Jabsco 51220-0011 Bronze Clutch Pump (Manual / 1-1/2" Flange)
Jabsco 51220-0011 Bronze Clutch Pump (Manual / 1-1/2" Flange)
Regular price
£1,382.52 GBP
Regular price
Sale price
£1,382.52 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Jabsco 51220-0011 Bronze Clutch Pump (Manual / 1-1/2" Flange)
Part No: JAB-51220-0011
| Height Description | 225mm (8.85") |
| Length | 291mm (11.45") |
| Series | 51220 Series |
| Size | Pulley Size: 180mm Diameter Single A or B Section |
| Width | Excluding Pulley: 152mm (6") |
| Brand | Jabsco |
| Clutched Pump Pulley Size | Single A Section - 13mm|Single B Section - 16mm |
| Automatic Bilge Pumps | No |
| Bearing Type | Standard Duty |
| Maximum Pump Head | Over 4.27 Metres |
| Seal Type | Mechanical Seal |
| Warranty | 1 Year |
| Flow Rate 3 Metre Head | 11700LPH (2573 US GPH) at 1500 RPM |
| Maximum Recommended Head | 23 Metres (65 Feet) |
| Model | 51220-0011 |
| Replacement Impeller | JAB-17935-0001 |
| Self Primes up to | 2.4 Meters (7.9 Feet) |
| Inlet Outlet | 1-1/2" Flanged Ports |
