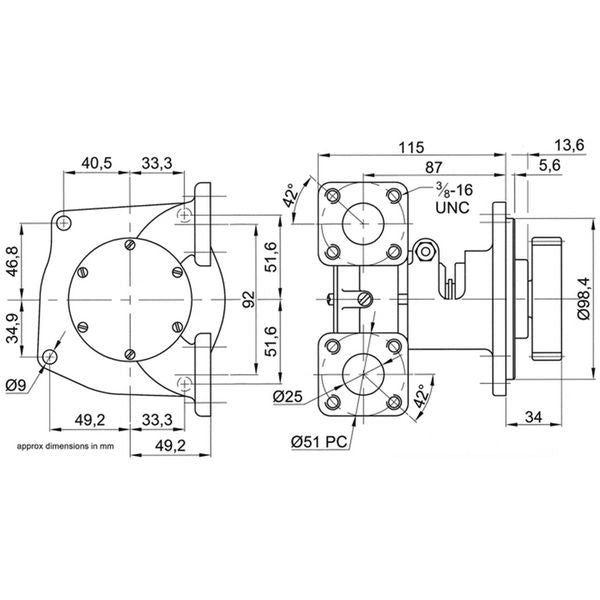

Jabsco Engine Cooling Pump 10970-21 (3/4" Flanged / Flange Mount)

Part No: JAB-10970-21

Jabsco 10970-21 flexible impeller flange mounted pump, with 3/4" square flanged ports and helical drive gear.

This Jabsco Pump 10970-21 is suitable for the following Engines:

- Perkins 4.236 LL, M90, 4HD 76, 6HD

When ordering the Jabsco 10970-21 pump, we recommend adding a replacement impeller to your order, use part number: JAB-1210-0001-P - always carry a spare!

Jabsco Pump 10970-21 Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | End Cover | 11830-0000 | 1

2 | Gasket | 3298-0000 | 1

3 | Cam | 490-0001 | 1

4 | Screw (3 Pack) | 91003-0010 | 1

5 | Wear Plate | 7883-0000 | 1

6 | Seal Assembly | 22617-0010 | 1

9 | Seal | SP2701-21B | 1

10 | Bearing | SP2601-39B | 2

11 | Spacer | 9998 | 1

13 | Screw (3 Pack) | 91002-0020 | 6

14 | Spline Plug (3 Pack) | 4345-0000 | 1

16 | Impeller & Gasket Kit | 1210-0001-P | 1

17 | Retaining Ring (3 Pack) | 91700-0620 | 1

18 | Bolt | SP1095-09 | 1

19 | Washer | SP1602-06 | 1

20 | Nut | SP1105-03 | 1

21 | Slinger (3 Pack) | 3286-0000 | 1

22 | Shaft | 9977-01 | 1

23 | Bearing Housing | 10976 | 1

24 | Retaining Ring (3 Pack) | 18714-0000 | 1

| Service Kit | SK268-01 | 1
