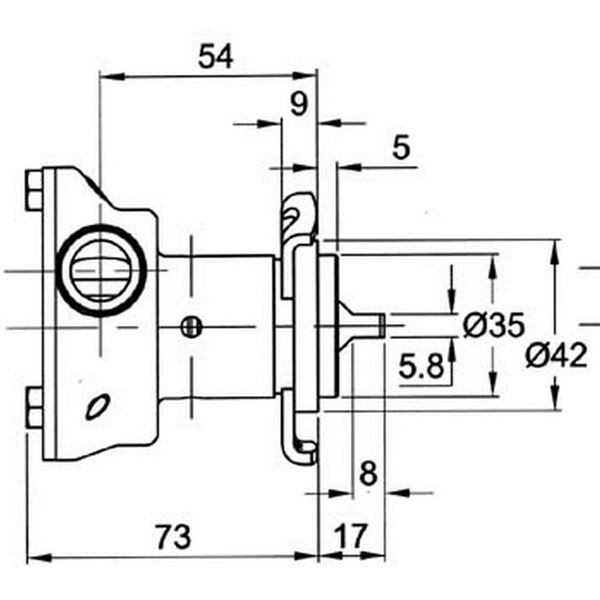

Jabsco Engine Cooling Pump 29460-1631 (20mm Hose / Flange Mount)

Part No: JAB-29460-1631

Jabsco 29460-1631 flexible impeller flange mounted pump for engine cooling applications. The Jabsco engine cooling pump replaces Jabsco 29460-1401 & 29460-1431 pumps.

Jabsco Pump 29460-1631 Engine Suitability:

- Beta Marine BZ482, BD662, BD772 & Kubota-Series BZ / BD / BV

- Kubota BZ482, BD772, BD1005, BV1305, BV1505, BV1903, BV2203 & BF2803

- Nanni 2.50HE, 3.75HE

When ordering the Jabsco 29460-1631 pump, we recommend adding a replacement impeller, use part number: JAB-18653-0001-P - always carry a spare!

Jabsco 29460-1631 Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Bearing | SP2601-0457 | 2

3 | End Cover Kit | SK501-0000 | 1

4 | Screw | X3001-147F | 3

5 | Impeller | 18653-0001B | 1

6 | Seal | SP2701-1006B | 2

7 | O-Ring | X4020-210A | 1

8 | O-Ring | 18753-0660 | 1

9 | Mounting Clamp | 22466-0100 | 2

10 | Retaining Ring | SP1701-4438 | 1

11 | Retaining Ring | SP1701-4440 | 2

12 | Shaft | 29467-0010 | 1

13 | Screw | SP1010-06 | 1
