Jabsco Engine Cooling Pump 29460-1701 (20mm Hose / Flange Mount)

Part No: JAB-29460-1701

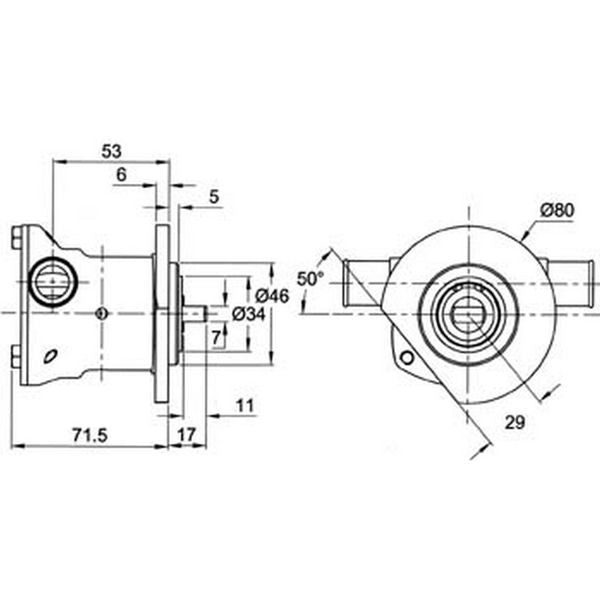

Jabsco 29460-1701 flexible impeller flange mounted pump, with ports for 20mm (3/4") inside diameter hose. The Jabsco engine cooling pump replaces Jabsco 29460-1301 pumps.

This Jabsco Pump 29460-1701 is suitable for the following Engines:

- Beta Marine BD1005 / BV1205 / BV1305 / BV1505

When ordering the 29460-1701 pump, we recommend adding a replacement impeller to your order, use part number: JAB-18653-0001-P - always carry a spare!

This Jabsco Pump 29460-1701 has the following Spare Parts:

Part ID | Spare Part | Part Number | Quantity

1 | Bearing | SP2601-0457 | 2

3 | End Cover Kit | SK501-0000 | 1

4 | Screw | X3001-147F | 3

5 | Impeller | 18653-0001B | 1

6 | Seal | SP2701-1006B | 2

7 | O-Ring | X4020-210A | 1

8 | O-Ring | 18753-0660 | 1

9 | Mounting Clamp | 22466-0100 | 2

11 | Retaining Ring | SP1701-4440 | 2

12 | Shaft | 29467-0020 | 1

13 | Screw | SP1010-06 | 1
