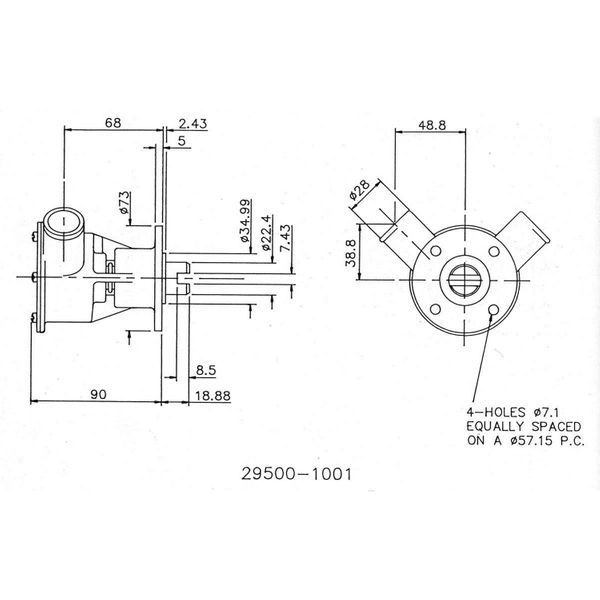

Jabsco Engine Cooling Pump 29500-1001 (28mm Hose / Flange Mount)

Part No: JAB-29500-1001

This Jabsco 29500-1001 flexible impeller flange mounted engine cooling pump suits 28mm (1-1/8") ID hose. The Jabsco engine cooling pump supports Perkins 4.99M and Prima applications.

Jabsco 29500-1001 Pump Engine Suitability:

- Aifo Iveco CO 1DM, 2DM, 3DM, 514, 600 & 8141SM11

- Caterpillar Marine Power 4.120

- Lancing Marine: BMC 3.4, 3.8 (4/98) & 5.1, Jaguar 2.4 & 4.2, Perkins 4.203

- Nanni Diesel MB 180 & 300

- Perkins Perama Prima & 4.99M

- Saab M 4.295

- Sole Diesel MB 636, SM 636 & 4.108

- Tempest Diesels Commander 2.5 (HX), 50 HP (HX) & Sea Prince 3000S

- VM-Motori 103, 4, 6 MH-Series, 116 DAN M, 804 & 806 M

- Volvo Penta MD 22

Jabsco 29500-1001 Pump Spare Parts:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw (3 Pack) | 91002-0020 | 6

2 | End Cover | 11830-0000 | 1

3 | Gasket | 3298-0000 | 1

4 | Cam | 490-0001 | 1

5 | Screw | 91003-0010 | 1

6 | Spline Plug (3 Pack) | 4345-0000 | 1

7 | Impeller & Gasket Kit | 1210-0001-P | 1

10 | Wear Plate | 7883-0000 | 1

12 | Seal | SP2700-1027B | 1

13 | Spacer | 23431-0000 | 1

18 | O-Ring | X4020-215A | 1

20 | Seal | SP2700-1027B | 1

21 | Bearing | SP2601-0451B | 2

23 | Bearing Spacer | SP1613-1408 | 2

26 | Shaft | 29508-0000B | 1

| Service Kit | SK384-0001 | 1
