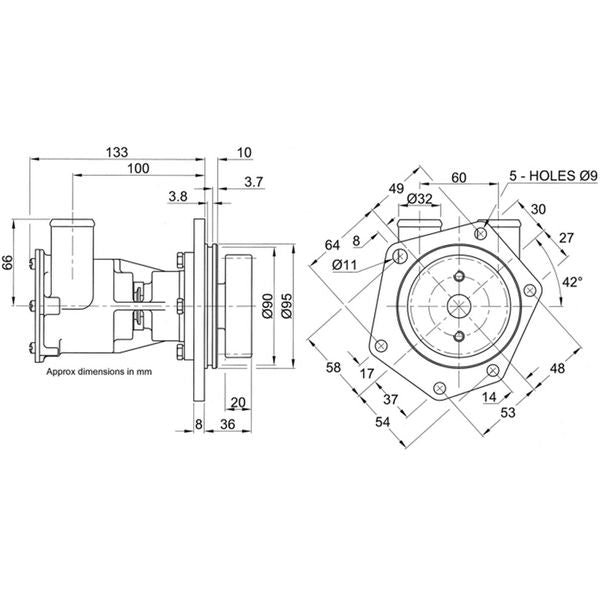

Jabsco Engine Cooling Pump 29640-1101 (32mm Hose / Flange Mount)

Part No: JAB-29640-1101

Jabsco 29640-1101 flexible impeller flange mounted pump, with ports for 32mm (1-1/4") ID hose. The Jabsco engine cooling pump is self priming and will replace Jabsco 29630-1001 pumps.

Jabsco Pump 29640-1101 fits Engines:

Perkins 1000 Phaser, 1004 Phaser and 1006 Phaser

Sabre 370T, M130C, M185C, M215C and M225Ti

When ordering the 29640-1101 pump, we recommend adding a replacement impeller to your order, use part number: JAB-17937-0001-P - always carry a spare!

Jabsco Pump 29640-1101 Spare Parts:

Part ID | Spare Part | Part Number | Quantity

1 | Screw | SP1003-0111 | 6

2 | Cam | 934-0000 | 1

3 | End Cover | 11831-0000 | 1

4 | Gasket | 890-0000 | 1

5 | Screw (3 Pack) | 91004-0090 | 1

6 | Retaining Ring (3 Pack) | 91700-0620 | 1

8 | Wear Plate | 4156-0000 | 1

9 | Washer | 29706-0000 | 1

10 | Seal Assembly | 22646-0000B | 1

11 | Seal | SP2700-1027B | 1

12 | Bearing (Front A) | SP2601-0500 | 2

13 | Bearing Spacer | SP1613-1408 | 1

15 | Impeller & Gasket Kit | 17937-0001-P | 1

16 | Spline Plug (3 Pack) | 4345-0000 | 1

19 | O-Ring | X4020-354A | 1

20 | Shaft | 29647-0100 | 1

| Service Kit | SK385-0101 | 1
