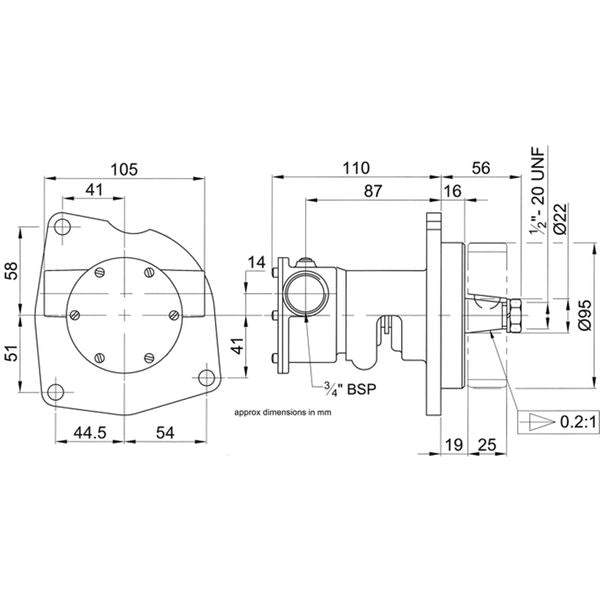

Jabsco Flange Mounted Engine Cooling Pump 10950-2401 (3/4" BSP Ports)

Part No: JAB-10950-2401

Jabsco 10950-2401 flexible impeller flange mounted raw water engine cooling pump. The Jabsco bronze engine cooling pump is fitted for the following engines:

Jabsco 10950-2401 engine cooling pump engine applications:

- Ford 2700, 2701E, 2704E, 2704ET / A, 2710, 2711E, 2712E, 2713E, 2714E & 2720

- Leyland Thornycroft 240, 250, 251, 331, 360, 360.1, T360.1 & 380

- Sabre Ford Dorset 80, 120 & 140

- Lehman Mercraft 80, 120 & 150 Turbo

- American Diesel Ford (UK) 4 Cylinder Engines

- Buroli Ford 2401E

- Isotta Fraschini D 30.55-6L

- Saab F 4.254 & F 6.380

- Watermota Lion & Scout

The Jabsco 10950-2401 pump replaces Jabsco pumps: 10950-200, 10950-201, 10950-204, 10950-205, 10950-2101, 10950-2141 and 10950-2701, Johnson pumps: 10-24140 and 10-24140-1.

The Jabsco engine cooling pump is renowned for its reliability and engine cooling efficiency. To ensure your Jabsco pumps work as the manufacturer intended it is strongly advised to use only genuine Jabsco pump impellers and pump spares.

When ordering the Jabsco 10950-2401 pump, we recommend adding a replacement impeller, use part number: JAB-1210-0001-P - always carry a spare!

Jabsco 10950-2401 Pump Spares:

Part ID | Spare Parts | Part Number | Quantity

1 | Screw | 91002-0020 | 6

2 | End Cover | 11830-0000 | 1

3 | Gasket | 3298-0000 | 1

4 | Cam | 490-0001 | 1

5 | Screw | 91003-0010 | 1

6 | Spline Plug | 4345-0000 | 1

7 | Impeller & Gasket Kit | 1210-0001-P | 1

9 | Body | 10554-200 | 1

10 | Wear Plate | 7883-0000 | 1

11 | Seal Assembly | 22617-0010 | 1

12 | Retaining Ring | 91700-0620 | 1

15 | Nut | SP1105-03 | 1

16 | Bolt | SP1095-09 | 1

17 | Washer | SP1602-06 | 1

18 | Slinger | 3286-0000 | 1

19 | Bearing Housing | 10959-0001 | 1

20 | Seal | SP2701-21B | 1

21 | Bearing | 10959-0001 | 2

24 | Retaining Ring | SP1700-250 | 1

26 | Shaft | 23377-0000 | 1

28 | Key | SP1401-10 | 1

29 | Washer | 11085 | 1

30 | Nut | 11086 | 1

31 | Helical Gear | 11084 | 1

31 | Straight Cut Gear | CW119 | 1

| Service Kit | SK239 | 1
