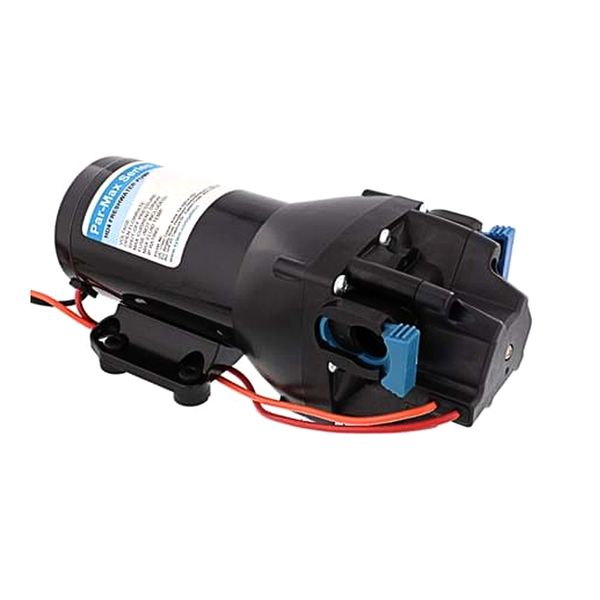

Jabsco Par-Max HD4 Freshwater Delivery Pump (12V / 15LPM / 40PSI)

£232.08 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Jabsco Par-Max HD4 Freshwater Delivery Pump (12V / 15LPM / 40PSI)

Part No: JAB-Q401J-115S

The Jabsco Xylem Par-Max HD4 12V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium end bells and lower housing to improve pressure capability and life.

The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets.

Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2" quick connect straight hose barb fittings and a quick connect inline 40 mesh strainer.

- Voltage: 12V DC

- Open flow: 4 GPM (15 LPM)

- Shut-off pressure: 40 PSI (2.8 BAR)

- Max. current: 10.0 Amps

- Recommended fuse size: 15A

- Port fittings: 2x 1/2" Straight Hose barb

- Dimensions: 9.4" (239mm) in length, 4.1" (104mm) in width, 3.8" (97mm) in height

Approvals	ISO 8846 Ignition Protected, C.E Certified, RCM compliant
Cut In Pressure	35 PSI
Cut Out Pressure Description	40 PSI / 2.8 Bar
Flow Rate Description	15 LPM (4 US GPM)
Fuse	15A (not included)
Height Description	97mm
Size	Leads: 12" (305mm), 14 AWG (2.5mm^2)
Supplied With	Inline Strainer (40 mesh) & Quick Connect Fittings
Temperature Range	Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F)
Type	Fresh Water Pumps
Voltage Description	12V DC
Weight	2.94kg
Width	104mm
Brand	Jabsco
Model	Q401J-115S-3A
Pressure Rating	Operating: 40 PSI (2.8 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum
Replaces	509737
Self Primes up to	Up to 8ft (2.4m) dry prime
Inlet Outlet	Fittings for 13mm (1/2") ID hose
Amps Description	10 Amps at 40 PSI (2.8 BAR)
Depth	239mm
