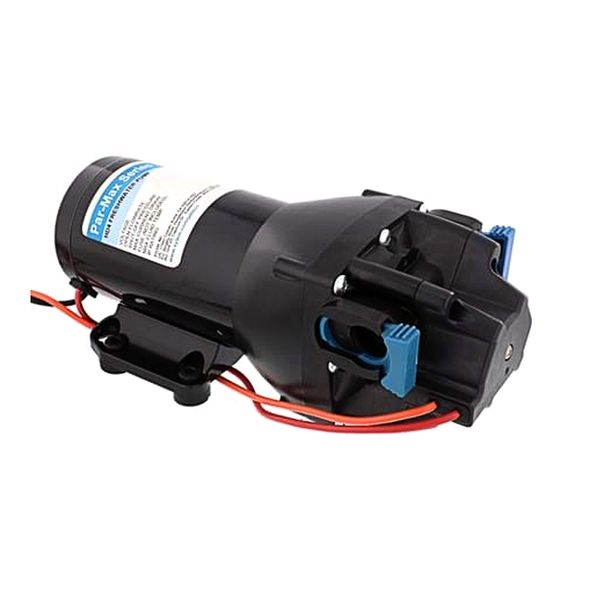

Jabsco Par-Max HD4 Freshwater Delivery Pump (24V / 15LPM / 25PSI)

Part No: JAB-Q402J-112S

The Jabsco Xylem Par-Max HD4 24V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium endbells and lower housing to improve pressure capability and life.

The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets.

Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer.

- Voltage: 24V DC

- Open flow GPM (LPM): 4 (15)

- Shut-off pressure PSI (BAR): 25 (1.7) EU only

- Max. current AMPS: 4.0

- Recommended fuse size: 10

- Port fittings: 2 x 1/2" Straight Hosebarb

- Dimensions: 9.4” in length, 4.1” in width, 3.8” in height / 239(L) x 104(W) x 97(H)mm
