Jabsco Quiet Flush E2 Raw Water Electric Toilet (24V / Compact Bowl)

Part No: JAB-38245-3094

The Jabsco Quiet Flush E2 marine electric toilet is suitable for raw water flushing and is supplied with a remote mounted pump for water intake. The Jabsco 38245-3094 toilet features a compact bowl size ideal for where space is limited and offers a stylish, modern look to your head.

The quiet flush toilets are a combination of the popular Jabsco 37010 series of marine electric toilets with the added bonus of being extra quiet to make life easier for everyone.

The Jabsco quiet flush toilet comes complete with a three way control panel to allow the operator to select a normal flush and drain cycle or to lower or raise the water level. A quiet running pump to bring in raw flushing water, as well as a Pumpgard strainer, are also supplied.

Jabsco Quiet Flush E2 Marine Toilet Features & Benefits

- Can be mounted up to 1m (3ft) below the waterline.

- Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.

- Features 2m (6ft) of white hose to neatly connect the inlet bowl fitting to the inlet pump.

- Hygienic, pure white vitreous china bowl for ease of cleaning.

Included:

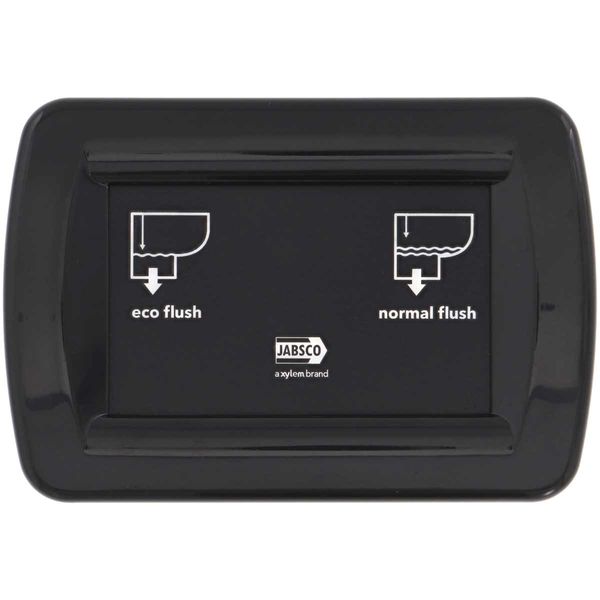

- Multi-Function Touch Panel with stylish low-profile design and touch-sensitive operation. The toilet control panel features eco flush, full flush and or empty functions. Only 1-litre (1-quart) of water is consumed per flush using eco mode. This Multi-Function touch panel is designed for wet room installations. No spill 'empty' feature to leave bowl dry when boat is in motion.

- Rinse pump kit (Jabsco Par-Max 3 rinse pump 24V 11 LPM (3GPM), 40 mesh in-line strainer and 1/2" (13mm) hose barb ports).

- Straight or 90-degree discharge ports available for easy install.

Key Features
