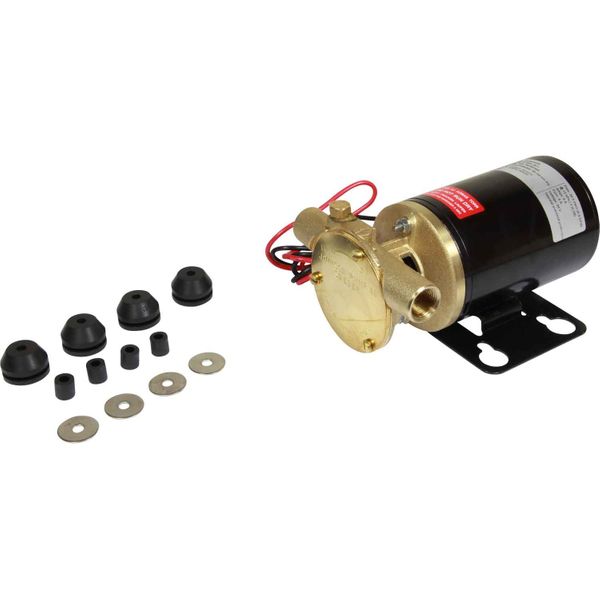

Johnson F3B-19 Electric Motor Pump (24V / 21lpm / 3/8" BSP)
Part No: 10-24516-02
The Johnson F3B-19 electric motor pump is for 24V and can pump 21 litres per minute and self primes up to 4 metres. The Johnson pump has a nitrile impeller and a bronze construction with 3/8" BSP connections.
Johnson 10-24516-02 Spare Parts:
Position | Spare Part | Part Number
1 | Body | 01-24452-3
2 | Motor (24V) |
3 | Impeller | 09-824P-9
4 | Lip Seal | 0.2233.007
5 | End Cover | 01-42398
6 | O-Ring | 0.2173.470
7 | Screw | 0.0279.501
8 | Nut | 0.0185.389
9 | Washer | 0.0353-301
10 | Slinger | 0.2173.470
11 | Plug | 0.2500.805
12 | Foot Kit | 09-47194
| Service Kit | 09-46600
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
| Flow Rate Description | 1260LPH (330 US GPH) |
| Flow Rate 1 Metre Head | 1230 LPH (324 US GPH) (at 1.8m Head: 1200 LPH (318 US GPH)) |
| Fuse | 8A |
| Height Description | 82mm (3.2") |
| Length | 170mm (6.7") |
| Series | F3B-19 |
| Voltage Description | 24V DC |
| Width | 100mm (4") |
| Brand | Johnson |
| Automatic Bilge Pumps | No |
| Flow Rate 3 Metre Head | 1170LPH (312 US GPH) |
| Flow Rate 6 Metre Head | 1068LPH (282 US GPH) |
| Model | 10-24516-02 |
| Replacement Impeller | JP-09-1052S-9 |
| Self Primes up to | 3 Metres (9.8 Feet) |
| Inlet Outlet | 3/8" BSP Female Thread |
| Amps Description | 4.0A at 0 Bar & 0 Feet, 4.2A at 0.6 Bar & 20.1 Feet |
