Johnson F4B-19 Electric Motor Pump (24V / 48lpm / 1/2" BSP)
Johnson F4B-19 Electric Motor Pump (24V / 48lpm / 1/2" BSP)
Regular price
£377.09 GBP
Regular price
Sale price
£377.09 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

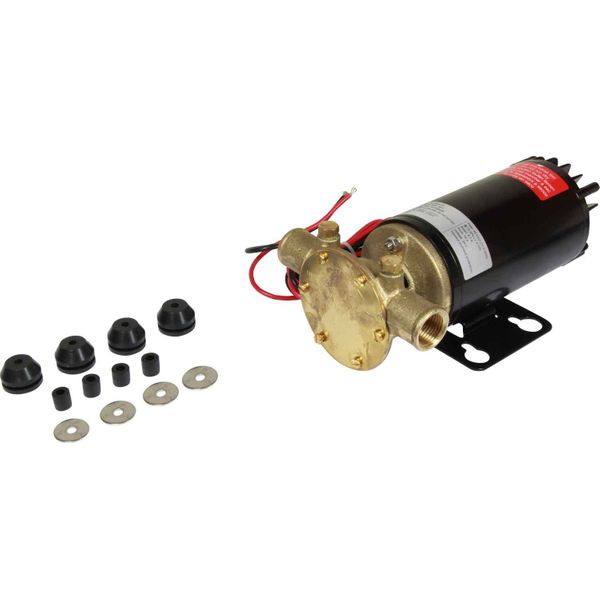

Johnson F4B-19 Electric Motor Pump (24V / 48lpm / 1/2" BSP)
Part No: 10-24689-02
The Johnson F4B-19 electric motor pump is for 24V and can pump 48 litres per minute and self primes up to 4 metres. The Johnson pump has a nitrile impeller and 1/2" BSP connections.
Johnson 10-24689-02 Spare Parts:
Position | Spare Part | Part Number
1 | Body | 01-24452-1
2 | Motor (24V) | 01-24676-02
3 | Impeller | 09-824P-9
4 | Lip Seal | 0.2233.007
5 | End Cover | 01-42398
6 | O-Ring | 0.2173.470
7 | Screw | 0.0279.501
8 | Nut | 0.0185.069
9 | Washer | 0.0350.207
10 | Slinger | 0.2173.470
11 | Plug | 0.2500.805
12 | Foot Kit | 09-47194
| Service Kit | 09-46600
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
| Flow Rate Description | 2880LPH (762 US GPM) |
| Flow Rate 1 Metre Head | 2700 LPH (714 US GPH) (at 1.8m Head: 2670 LPH (702 US GPH)) |
| Fuse | 8A |
| Height Description | 90mm (3.54") |
| Length | 202mm (7.9") |
| Series | F4B-19 |
| Voltage Description | 24V DC |
| Width | 120mm (4.75") |
| Brand | Johnson |
| Automatic Bilge Pumps | No |
| Flow Rate 3 Metre Head | 2460LPH (648 US GPH) |
| Flow Rate 6 Metre Head | 2040LPH (540 US GPH) |
| Hose Size | 25mm / 1" |
| Model | 10-24689-02 |
| Replacement Impeller | JP-09-824P-9 |
| Self Primes up to | 4 Metres (13.1 Feet) |
| Inlet Outlet | For 25mm (1") ID Hose & 1/2" BSP Female Thread |
| Amps Description | 6.5A at 0 Bar & 0 Feet, 7.5A at 0.6 Bar & 20.1 Feet |
