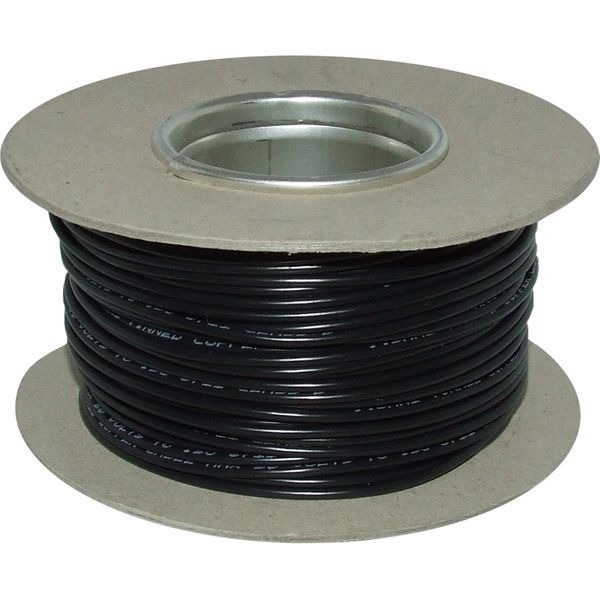

Oceanflex 1 Core 1.5mm² Tinned Black Thin Wall Cable (50m)
Oceanflex 1 Core 1.5mm² Tinned Black Thin Wall Cable (50m)
Couldn't load pickup availability
Part No: 748115-A
Oceanflex thin wall tinned electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a single core copper conductor manufactured to BS EN 60228:2005 which is tinned and then insulated in a hard grade PVC insulation. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 50 metre cable reel with black PVC wall, other wall colours are also available.
| Approvals | Manufactured in accordance with ISO6722: 2011 (Class B) |
| Maximum Load Description | 12V = 252 Watts, 24V = 504 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Type | Tinned Single Core Cables |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | Oceanflex |
| Style | Thin Wall Cable |
| Cable Conductor | Tinned Copper |
| Cable Cores | 1 Core |
| Colour | Black |
| Country of Origin | United Kingdom |
| Unit of Sale | 50 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 21/0.30 mm |
| Cable Conductor Cross Section Description | 1.5mm² |
| Diameter Description | Max Outside Diameter: 2.4mm |
| Replaces | 712115-A |
| Resistance Per Metre at 20degC | 0.00130 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 21A |
