SHURflo

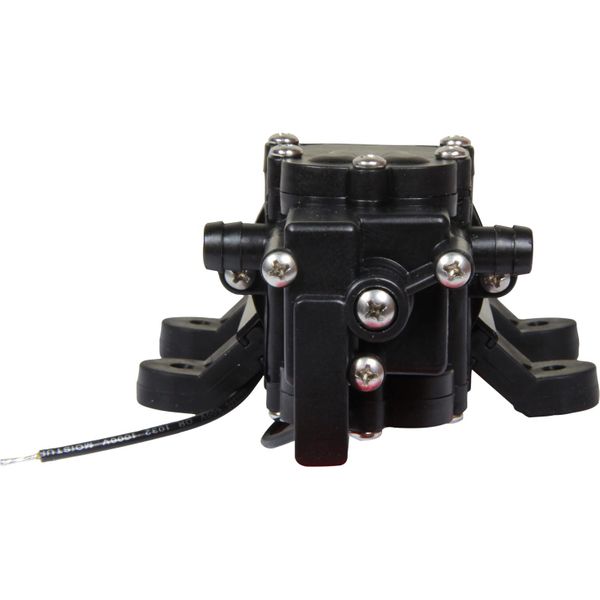

SHURflo Lo-Flo 105 Fresh Water Pump (12V / 3.8 LPM / 30 PSI / 3/8")
SHURflo Lo-Flo 105 Fresh Water Pump (12V / 3.8 LPM / 30 PSI / 3/8")
Couldn't load pickup availability
SHURflo Lo-Flo 105 Fresh Water Pump (12V / 3.8 LPM / 30 PSI / 3/8")
Part No: 509620
The SHURflo Lo-Flo 105 Series fresh water pumps are suitable for marine and RV use including pressurised water systems in cabins and general fresh water transfer.
The SHURflo Lo-Flo pumps are rugged, lightweight, compact and provide the ability to self-prime and run dry. The fresh water pumps standard features include a pressure demand switch, built in 3/8" hose bard ports, flexible mounting feet, splash proof motor and thermal protector.
The Lo-Flo 105 Series pumps are self-priming and can be located up to 2.5 feet above the water level. Horizontal and vertical prime may vary depending on the fluid viscosity and pump configuration.
SHURflo Boat Water Pump 105-013 Features & Benefits
- Single-Fixture 12V DC
- Self-Priming
- Intermittent duty
- Run dry capability
- 2.0 Bar shut-off pressure
- Long life pressure switch
- Ignition protected
- 1 Year warranty
| Cut Out Pressure Description | 30 PSI / 2 Bar |
| Flow Rate Description | 3.8 LPM (1 US GPM) |
| Fuse | 5A |
| Height Description | 60mm (2.4") |
| Length | 170mm (6.8") |
| Series | Lo-Flo 105 |
| Type | Fresh Water Pumps |
| Voltage Description | 12V DC |
| Width | 100mm (3.9") |
| Brand | SHURflo |
| Accumulator Recommended | No |
| Warranty | 3 Years |
| Hose Size | 10mm / 3/8" |
| Model | 105-013 |
| Replaces | 509500 SHURflo Aqua King Mini 1.0 Fresh Water Pressure Pump 1901-0013 |
| Self Primes up to | 0.75 Metres (2.5 Feet) |
| Inlet Outlet | To Suit 9.5mm (3/8") ID Hose |
| Amps Description | 3A Maximum |
