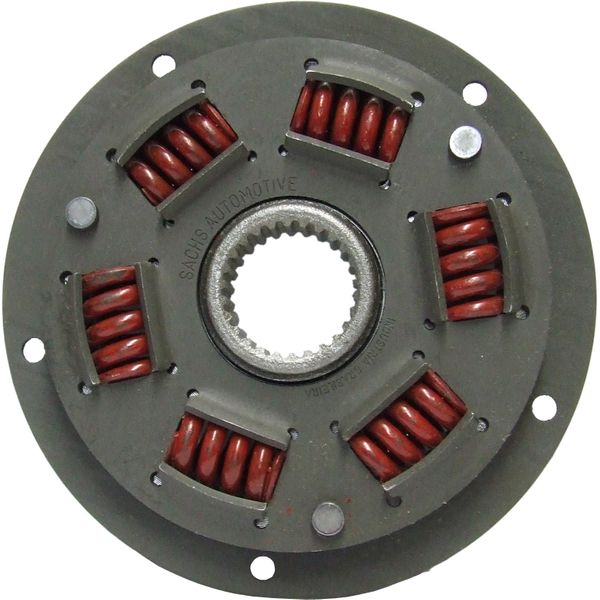

Spring Drive Plate For Borgwarner (26 Teeth Spline, 157.9mm Diameter)
Part No: DF-ASAP022
DriveForce Spring type drive plate.
Also known as the gearbox damper plate, clutch drive plate or spring drive plate, the ASAP022 DriveForce spring drive plate is a popular fitment on boat engines with either Borgwarner Velvet Drive gearboxes or TMP 1200 gearboxes. Can replace Borgwarner spring drive plate AS4K1C (10-04-650-002).
ASAP022 Drive plate technical details:
- 157.97mm (6.18") overall plate diameter.
- 26 teeth spline 20/40 DP (35.4mm diameter)
- 5 x 6.6mm (0.26") diameter holes equally spaced on a PCD of 141.99mm (5.59")
- Thickness overall 13.72mm (0.54").
- 6 springs
If you are unsure or need any assistance choosing your drive plate please contact our customer support department who will help you find the right parts for your application.
| Application | Borgwarner Velvet Drive gearboxes or TMP 1200 gearboxes. |
| Type | 26 Tooth Plates |
| Brand | DriveForce |
| Element | Spring |
| Bolt Hole PCD Description | 5 x 6.6mm (0.26") diameter holes equally spaced on a PCD of 141.99mm (5.59") |
| Diameter Description | OD: 157.97mm (6.18") |
| Gearbox Spline | 26 teeth 20/40 DP (35.4mm diameter) |
| Number of Fixing Holes | 5 |
| Replaces | AS4 K1C, 10-04-650-002, 54380213, AS4K1C & DA102 Damper Drive Plates |
| Thickness | Maximum: 22mm |
| Torque | 332 ft lb / 450.131 Nm |
