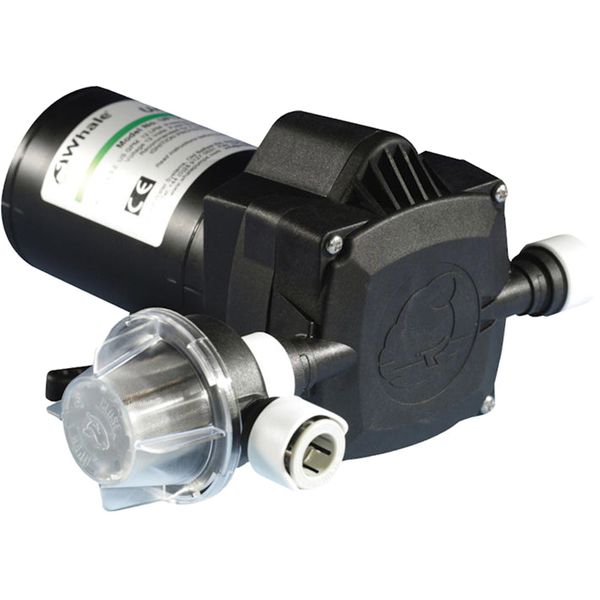

Whale Universal Water Pressure Pump (12V / 8 LPM / 45 PSI)

Whale Universal Water Pressure Pump (12V / 8 LPM / 45 PSI)

Regular price £131.86 GBP
Regular price Sale price £131.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Whale Universal Water Pressure Pump (12V / 8 LPM / 45 PSI)

Part No: W-UF0815

The Whale Universal water pressure pump provides smooth constant water flow thanks to a seamless 4 diaphragm design. The pump can perform constantly as it is undamaged by dry running. This water pump has rotating feet to easily fit existing fresh water or salt water pump systems. It runs quietly and efficiently and combines fantastic safety and reliability with high performance. A clear lid strainer is also included on the inlet which can be easily inspected and maintained.

Suitability for fresh water contact is assured because of the materials used, with only polypropylene, monprene, nitrile and stainless steel making contact with fluid. The rest of the pump is also made from robust materials, with a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress.

The pump is recommended for supplying 1-2 outlets throughout the boat. These can include taps, showers and other domestic water outlets.

Approvals EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition)
Cut Out Pressure Description 45 PSI / 3 Bar
Flow Rate Description 8 LPM (2.2 US GPM)
Fuse 5A
Height Description 125mm (4.9")
Length 220mm (8.7")
Material Materials in Contact with Liquid: Glass-filled polypropylene, Monoprene, Nitrile, Stainless Steel
Series Universal
Supplied With Strainer
Type Fresh Water Pumps
Voltage Description 12V DC
Width 230mm (9")
Brand Whale
Accumulator Recommended Yes
Country of Origin United Kingdom
Warranty 2 Years
Hose Size 13mm / 1/2", 15mm / 19/32"
Maximum Recommended Head Discharge Head: 30 Metres (98 Feet)
Model UF0815
Self Primes up to 3 Metres (9.8 Feet)
Wire Size Minimum: 2.5mm² (13 AWG)
Inlet Outlet Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose
