Johnson Aquajet Water Pressure Pump (24V / 20LPM / 41 PSI)

Johnson Aquajet Water Pressure Pump (24V / 20LPM / 41 PSI)

£310.44 GBP
£310.44 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

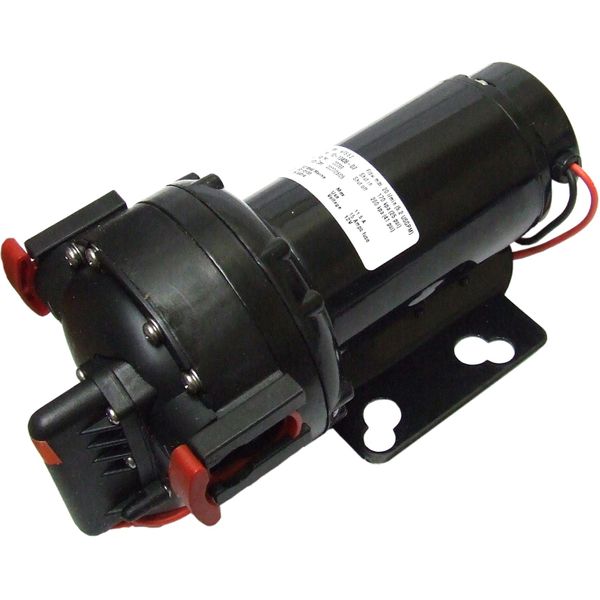

Johnson Aquajet Water Pressure Pump (24V / 20LPM / 41 PSI)



Part No: 10-13406-08

Johnson Aquajet water pressure pump for providing fresh water to taps, showers and the galley of a boat, or equally provide domestic water for a recreational vehicle or caravan. This is the Aquajet WPS 5.2, containing 5 chambers and featuring a simple to service design. It is recommended the pump is used in conjunction with an accumulator tank and fitted with a PUMProtector inlet strainer.

The pump has a santoprene diaphragm suitable for fresh water. The body is made from polypropylene and valves from EPDM rubber.

Johnson 10-13406-07 Spare Parts:

Spare Part | Part Number

Pressure Switch | 09-46781-01

Pump Head Kit | 09-47284-02

Fittings (3/4" Hose) | 09-46939

T-Fittings | 09-46907

Filter BSP | 09-24653-02

Filter NPT | 09-24653-02

Accumulator Tank | 09-46839-02

Rubber Bellow Accumulator Tank | 0.2770.241

Rubber Feet | 09-46908

Fitting Retainer | 09-47278

Johnson Pump Diagram

Approvals ISO 8846 MARINE (Ignition protection), CE Listed
Cut Out Pressure Description 41 PSI / 2.8 Bar
Flow Rate Description 20 LPM (5.3 US GPM)
Fuse 8A
Height Description 110mm (4.3")
Length 240mm (9.4")
Material PP Body, EPDM Valves & Santoprene Diaphragm
Series Aquajet WPS 5.2
Type Fresh Water Pumps
Voltage Description 24V DC
Wattage Motor: 150W
Weight 2kg
Width 214mm (8.4")
Brand Johnson
Accumulator Recommended Yes
Warranty 3 Years
Hose Size 13mm / 1/2", 19mm / 3/4"
Model 10-13406-08
Self Primes up to 2.5 Metres (8.2 Feet)
Inlet Outlet Fittings for 13mm (1/2") and 19mm (3/4") ID hose plus 3/8" BSP and 1/2" BSP
