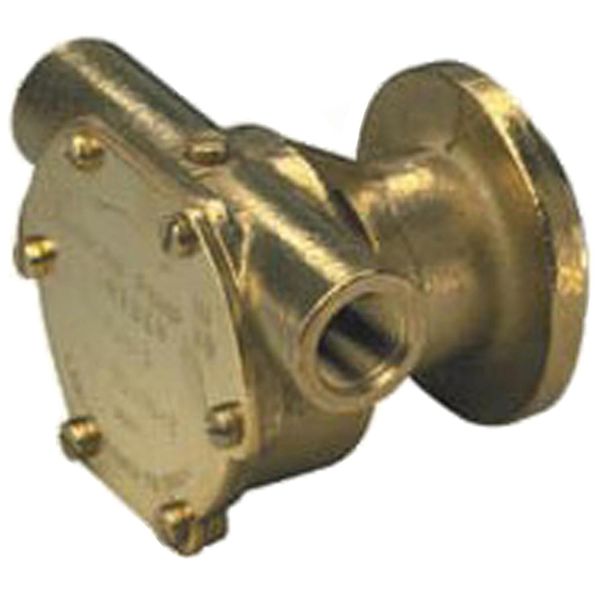

Johnson F4B-9 Flange Mounted Engine Cooling Pump (Vetus / 10-35161-1)

Part No: 10-35161-1

Johnson 10-35161-1 F4B-9 flange mounted engine cooling flexible impeller pump. The Johnson 10-35161-1 is from the F4B family of pumps. It is designed to be flange mounted to the engine timing cover. This pump has 3/8" BSP female ports.

This pump fits Vetus K3, K3D and K4 marine engines and will replace Jabsco 29470-2131 pumps.

The replacement impeller for this pump is available, part number: JP-09-810B.

Johnson 10-35161-1 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-35099-2 | 1

2 | Shaft | 01-45032 | 1

3 | Impeller | 09-810B | 1

4 | Cam | 01-42389 | 1

5 | End Cover | 01-45282 | 1

6 | Gasket | 01-45284 | 1

7 | Eccentric Sleeve | 01-45831 | 1

8 | Clip | 01-43238 | 2

9 | Screw | 05-04-124 | 1

10 | Screw | 05-04-163 | 6

11 | Screw | 05-04-114 | 1

12 | Lip Seal | 05-29-139 | 2

13 | Retaining Ring | 05-34-131 | 1

14 | Ball Bearing | 05-08-503 | 2

15 | Ball Bearing | 05-08-501 | 1

16 | Spacer | 01-45955 | 1
